New with PVC outer jacket

Hybrid cables suitable for Siemens
drives with OCC

Cost savings through product range addition with PVC outer jacket material

In 2022, we will expand the product portfolio of harnessed hybrid cables with the outer jacket material PVC. To meet the increased requirements of your components to be connected, our hybrid cables suitable for Siemens OCC are still the right choice for moving applications. Due to the consistently small bend radius of 10xd, potential savings can be implemented in terms of installation space and material costs.

To the shop suitable for Siemens OCC

With more than 4,600 drive cables, igus is now expanding its catalogue range, available at any time, with all its advantages (36-month guarantee, no minimum order quantity, no cutting charge, seven different cable qualities, ready for connection as well as tested and approved, from 24hrs). The harnessed hybrid cables suitable for Siemens consist of servo cable for power transmission as well as integrated bus wires for signal transmission (also known as One Cable Connection / OCC).

As ready-to-connect readycable with low cabling requirements, they are ready for immediate use and are therefore used in numerous industries and machine tools such as material handling, in conveyor systems or in plant construction.

Your benefits at a glance

Tech up

Tech up

Save installation space and weight: only one cable for power and data
With ready data sets for EPLAN, automatic generation of cable diagram, parts lists and other design documents in CAE
Directly orderable online with up to 36-month guarantee

Cost down

Cost down

Customised product selection through expansion of the product portfolio
Reduction of own warehousing costs through just-in-time delivery
No minimum quantity surcharges, no cutting charges
Reduce design time by 50% with ready-to-use EPLAN macros

Proof

Proof

100% testing, incl. test seal of approval and test report
3,800m² test laboratory
More than 12,000 digitally tested harnessed cables
per week

Sustainability

Sustainability

Long-lasting cable materials + high-quality plug-in connectors + machining = guaranteed reliability and value retention of the components
Individual service life calculation, thereby without over-dimensioning

Product range addition in 2022 with PVC outer jacket

Siemens hybrid servo cables (basic cables)

Manufacturer Part No.	Jacket material	igus® Part No.	Cable type	Number of cores and conductor nominal cross section [mm²]	Ø outer [mm]	Bend radius
NEW 6FX_002-8QN04	PVC	MAT97515129	Basic cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
6FX_002-8QN04	PUR	MAT98515147	Basic cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
NEW 6FX_002-8QN08	PVC	MAT97515130	Basic cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order
6FX_002-8QN08	PUR	MAT98515148	Basic cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order

Siemens hybrid servo cables (extension cables)

Manufacturer Part No.	Jacket material	igus® Part No.	Cable type	Number of cores and conductor nominal cross section [mm²]	Ø outer [mm]	Bend radius
NEW 6FX_002-8QE04	PVC	MAT97515131	Extension cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
6FX_002-8QE04	PUR	MAT98515149	Extension cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
NEW 6FX_002-8QE08	PVC	MAT97515132	Extension cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order
6FX_002-8QE08	PUR	MAT98515150	Extension cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order

Hybrid cables suitable for Siemens OCC with PUR outer jacket

Siemens hybrid servo cables (basic cables)

Manufacturer Part No.	Jacket material	igus® Part No.	Cable type	Number of cores and conductor nominal cross section [mm²]	Ø outer [mm]	Bend radius
6FX_002-8QN04	PUR	MAT98515147	Basic cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
6FX_002-8QN08	PUR	MAT98515148	Basic cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order

Siemens hybrid servo cables (extension cables)

Manufacturer Part No.	Jacket material	igus® Part No.	Cable type	Number of cores and conductor nominal cross section [mm²]	Ø outer [mm]	Bend radius
6FX_002-8QE04	PUR	MAT98515149	Extension cable	(4G0.34+(2x0.34)C+(4xAWG26)C)C	10.0	10.0xd	Order
6FX_002-8QE08	PUR	MAT98515150	Extension cable	(4G0.75+(2x0.5)C+(4xAWG26)C)C	11.0	10.0xd	Order

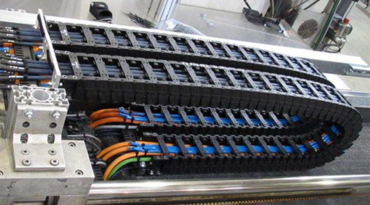

igus cables in load test

What are the advantages of hybrid drive cables?

All igus readycable with typical chainflex guarantee of 36 months

As with all chainflex cables, we concentrate exclusively on highly dynamic use in energy chains. For this reason, the materials selected for insulation, jacket and also for the entire processing are of much higher quality than for normal cables. These superstructures, tested in igus' own 3,800m² laboratory, must always pass through several million cycles in the test programme. This means that our cables are different from those offered by the rest of the market. Good shielding concepts are very important for hybrid cables.

Find the matching drive cable

Bosch Rexroth

The readycable product finder: direct service life calculation of all drive cables.

Sold by the metre with hybrid technology

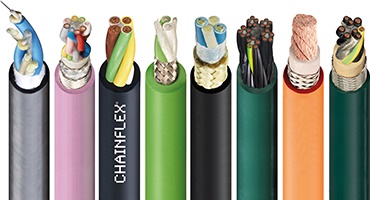

chainflex® portfolio

The chainflex cables are unharnessed cables for moving applications in energy chains or for robot applications, dependable with 36-month guarantee. There you will find numerous hybrid cables as unharnessed sold by the metre in the catalogue range.

Go to the CF cables here

Energy supply systems ready for connection

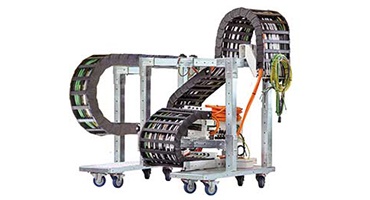

readychain harnessing

With our readychain systems, we provide individual, harnessed energy supply systems, which can be easily installed on site. This allows internal process costs to be significantly reduced and you can focus on your core competencies.

Find out more about readychain!
